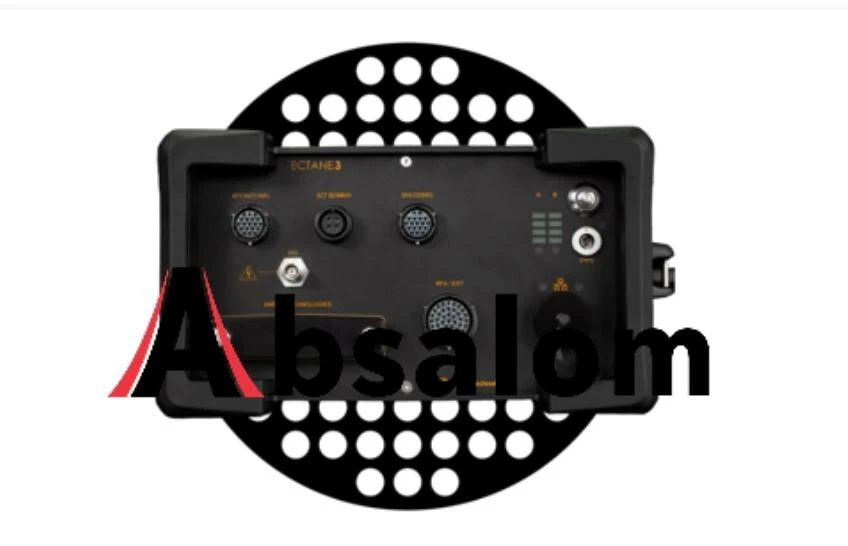

Ectane 3

Soluția completă pentru examinarea țevilor din orice grupă de materiale, funcțional cu toate tehnicile electromagnetice (ECT, ECA, TECA, RFT, RFA, NFT, NFA, MFL(A)) + tehnologia ultrasonică IRIS.

Noua versiune ECTANE 3 aduce sonde matriciale RFA și capabilități software avansate bazate pe algoritmi de identificare automată a indicațiilor relevante (AI).

Caracteristici

Tehnologii

• Eddy Current Testing (ECT)
• Eddy Current Array (ECA)
• Tangential Eddy Current Array (TECA™)
• Remote-Field Testing (RFT)
• Near-Field Testing (NFT)
• Near-Field Array (NFA)
• Magnetic Flux Leakage (MFL)
• Internal Rotating Inspection System (IRIS) ultrasonic testing

Benefits

• All technologies required in a single instrument
• Portable and compact
• Robust and shock-resistant
• Sealed and water-resistant
• Battery-powered
• Seamlessly integrated with Probot™
• Works with industry-leading Magnifi^® software

Applications

• Heat exchangers (ferrous and non-ferrous)
• Condensers, Feedwater heaters
• Fin-fan air coolers and boilers
• Chillers, air conditioning / HVAC
• Balance of Plant
• Surface ECA inspection for nuclear components
• In-line / quality control surface ECA inspections

Specificații tehnice

GENERAL

Dimensions (W × D × H)

• 279.6 × 254.0 × 158.8 mm (11.00 × 10.00 × 6.25 in)

Weight

• With batteries: 6.8 kg (15 lb)
• Without batteries: 5.9 kg (13 lb)

Volume

• 10 L (610 in³)

Battery autonomy (typical)

• 8 hours

Cooling

• Sealed and fanless

Compliance

• ASME, EN 61010-1, CE, WEEE, FCC Part 15B, ICES-003, AS/NZS CISPR 22, RoHS

ECT

Probe inputs

• 8

Frequencies

• Up to 160

Frequency range

• 5 Hz–10 MHz

Generator output/coil drive

• Up to 20 Vpp

ECA

Number of channels

• 64, 128, or 256

RFT AND NFT

Probe inputs

• 4
• EXTENDED ET connector: 8

Frequencies

• 5

NFA

Number of channels

• 64

MFL

Probe inputs

• 4
• EXTENDED ET connector: 8

IRIS

Internal pulser/receiver

• 0–200 V drive
• 0–70 dB (1 dB steps)
• 0–40 dB DAC

Transducer frequency

• 5–20 MHz

Maximum pulsing rate

• Up to 26 kHz

Views

• Real-time A, B, and C-scans

Wall thickness measurements

• 50% thinner than competitors (patent pending)

Turbine speed

• Up to 100 RPS for fast pulling
